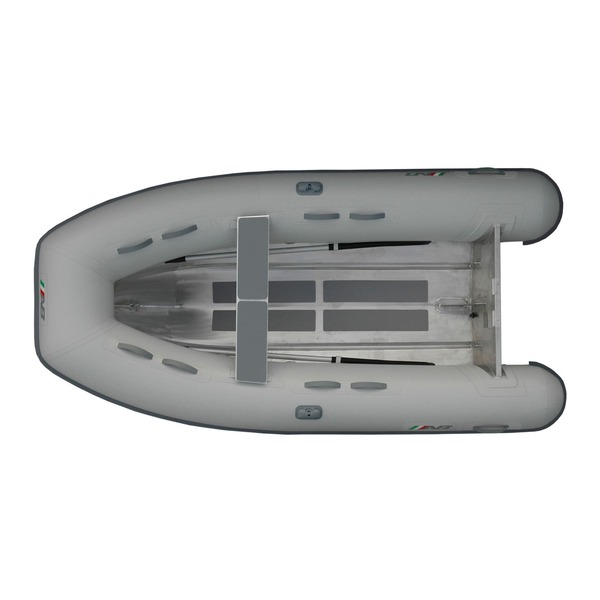

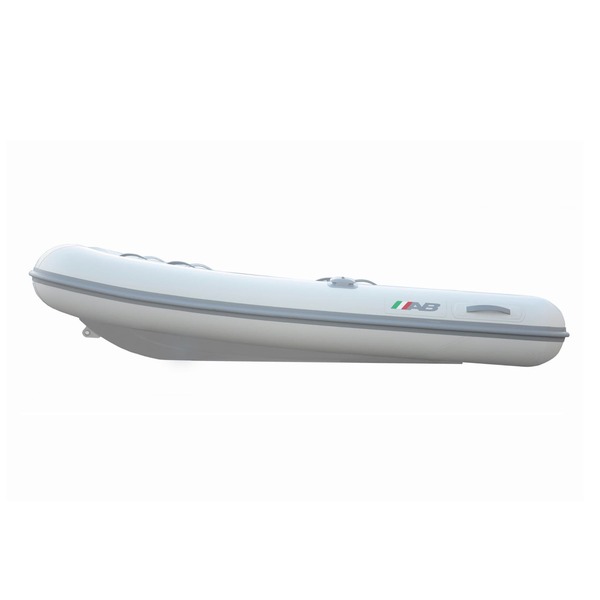

AB Inflatables Lammina 10 UL - ORCA CSM / Hypalon

​​​​​Extremely light in weight, small but powerful, designed to deliver performance in style. Built with the same quality standards as our larger, luxury models, the Lammina UL is our most sophisticated lightweight tender yet.

Created to deliver performance on the water, its open design also creates an interior that is ideal for safely transporting cargo and crew. Ideal for the cruising couple, this tender feature an ultra-lightweight aluminum hull and a stronger CSM Coated Fabric in 820 D-tex which means a higher level of resistance. Its smaller size is perfect for weaving through crowded moorings and exploring shallow bays. When the day’s adventure is over, the Lammina UL’s davit lifting points make for easier deck storage.

Although the tender is uncoated for minimal maintenance, you can choose to add a Chrome-free Pretreatment and Powder Coating. The UL line hulls are manufactured with key reinforcement points. These include lifting and towing eyes vertically positioned to avoid these from bending and reinforced transom knees.


Features:

Large Square Transom Alum. Reinforced Base
More Payload capacity
Ultra High Quality Welding
Reinforced Aluminum Bow Eye with SS Rings
Reinforced Aluminum Lifting Eyes with SS Rings
Aluminum Removable Rowing Seat
ORCA (CSM) Coated Fabric
Sunbrella Fabric Dinghy Chap Available
Sunbrella Fabric Boat Cover Available
Internal Aluminum Plate with Security Lip
Optional New Chrome Free - Advanced Pretreatment and Powder Coating Technology NEW
Ultra High Quality Welding
Reinforced (CSM) Fabric Handles
Custom Colors Upon Request
Non-skid Rubber Floor

Specifications:

Overall length: 10' / 3.05m
Overall Beam: 5'6" / 1.68m
Inside Length: 7'2" / 2.18m
Inside Beam: 2'8" / 0.81m
Tube Diameter: 17" / 0.43m
Number of Chambers: 3
Person Capacity: 5
Weight: 95lb / 43kg
Recommended HP: 8hp / 6kw
Maximum HP: 15hp / 11kw
Shaft length: 15" / 38.1dm
RDC Design Category: C
Hull Thickness 0.125 in / 3.18 mm

Standard Equipment:

Shallow “V” Marine Grade Aluminum Hull
Transom Knee
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate With Security Lip
Aluminum Bow Eye
3 Aluminum Davit Lifting Points
Deck Drain with Plug
Orca (CSM) Five Layer Coated Fabric
Raised Single Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Single Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
Removable Rowing Seat
Oarlock Base
Telescopic Oars with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner's Manual
3 Layers Reinforced Seams
